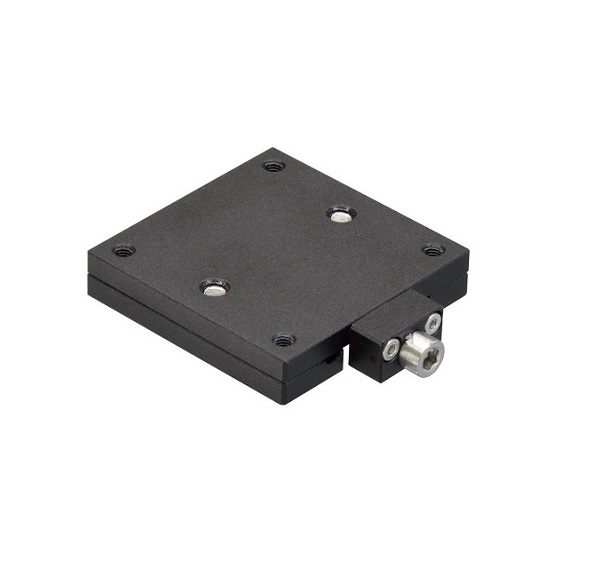

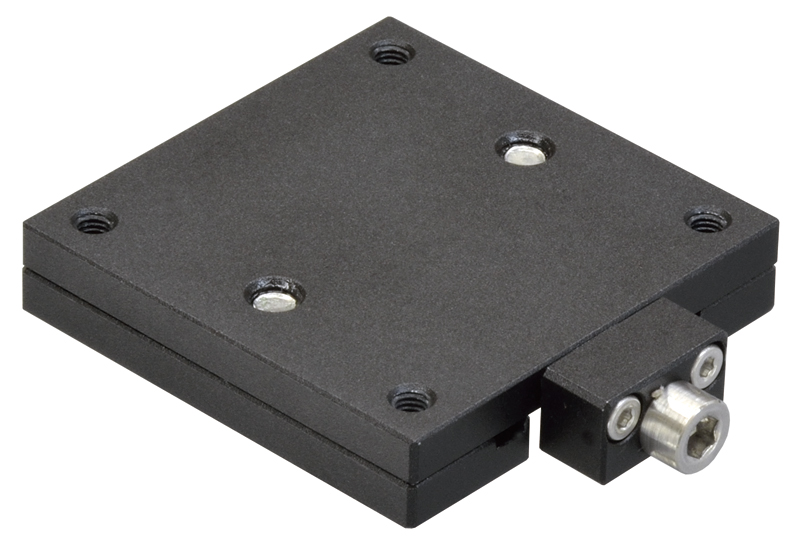

LS-T4052FX
Axis
X (Thin)
Size
40 x 40 (mm)
Height
8mm
Travel
-3.5 - 3.5 (mm)
Clamp Method
Natural Lock
Feeding Method
Feed Screw
Feed Pitch
0.7mm
Parallelism
0.1mm
Load Capacity
24.5N (2.5kgf)
Weight
0.04kg
MANUAL
DRAWING
2D CAD
DXF
3D CAD
STEP
3D CAD
PARASOLID
